Device Configuration Details

This section is mostly for Beamline Support in setting up devices. Bluesky/EPICS relies on specific device configurations in some cases, so one may refer here in the case of strange behavior.

Xspress3 Multi Channel Analyzer

There are a plethora of options available in the Xspress 3 EPICS IOC. The most relevant are listed below.

PV name

Setting

TriggerMode

Internal [1]

hdf5.file_write_mode

Stream [2]

NumImages

1

AcquireTime

5

Calibrating the Xspress3

The Xpress3 ships with calibration software. With the IOC off, run remote.py in /usr/lib64/python2.7/site-packages/xspress3-autocalib/remote.py.

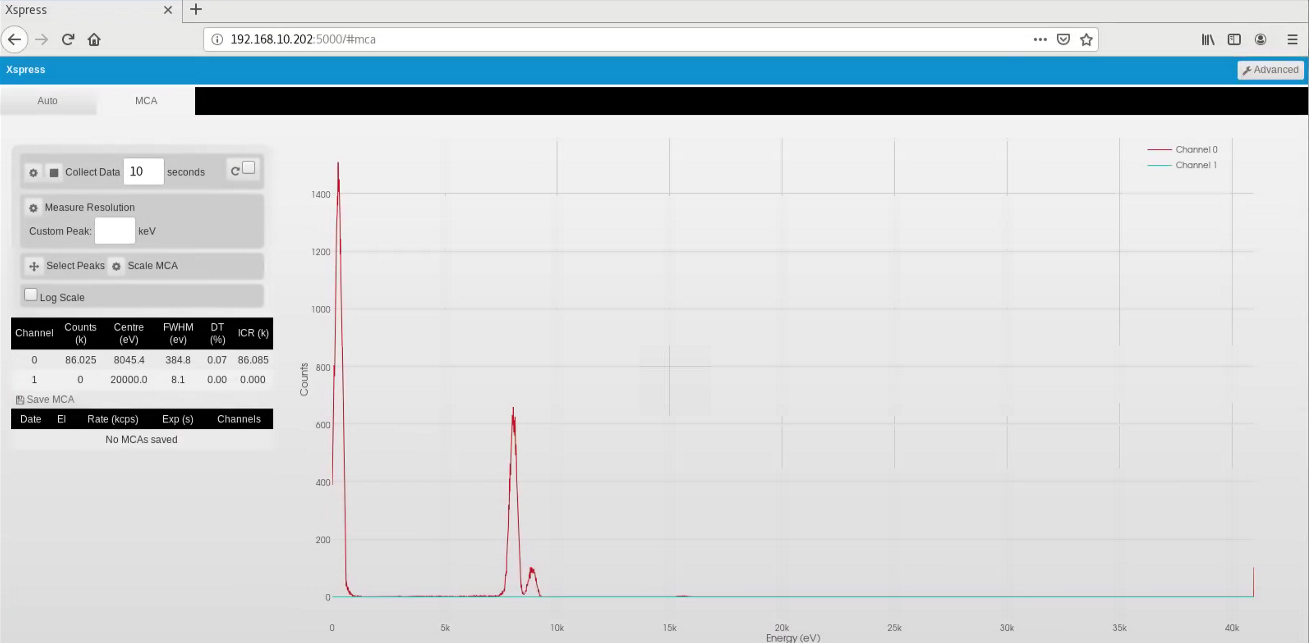

After some time a web page should appear with options to either collect a spectrum or perform autocalibration. Once you have confirmed the xspress3 is collecting data from a copper standard, start the calibration procedure. This process should center the copper peak at 8045 eV.

HiTp IP Network

Galil RIO

Motor Configuration

Name

Motor

.VELO

.VMAX

.ACCL

.VBAS

.SREV

.MRES

.UREV

th

BL00:IMS:MOTOR1

0.5

62.9881

0.05

0.5

51200

1.95313e-5

1

pz

BL00:IMS:MOTOR2

3.14961

4

2

0.1

28565

3.50079e-5

1

px

BL00:IMS:MOTOR3

15

15

2

0.05

25600

3.90625e-5

1

py

BL00:IMS:MOTOR4

31.4961

31.4961

2

7.87402

10240

9.76563e-5

1
